Overview

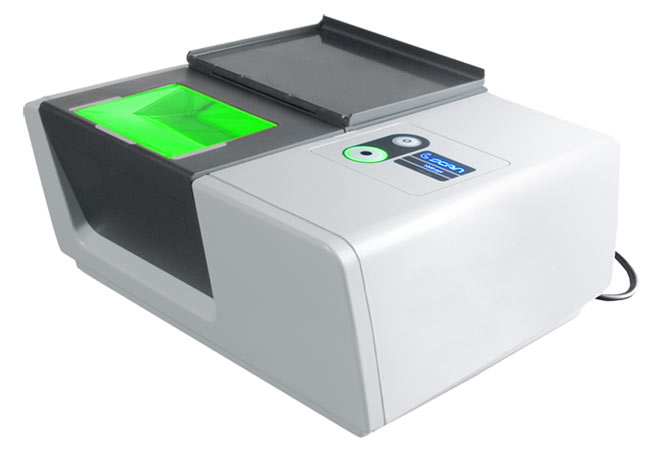

L SCAN 1000T is a lightweight biometric identity management solution for desktop, portable or cabinet configurations. The compact system is a 1000ppi high-resolution, ten-print image capture device.
Advantages
* Combines solid performance, real-time display and instant quality checks to produce clear & crisp images
* Developed using patented biometric technology
* High resolution (1000 ppi or 500 ppi - software selectable)
* FBI Appendix F-certified
Features And Benefits
* Rapid capture of ten rolled fingers, all flat fingers and thumbs
* High-quality image capture using Crystal View™ technology
* Real-time roll, scan and preview on screen with a single platen™
* Easy and intuitive image capture in unattended/self-service environments
* Optional L SCAN Cabinet available to create an integrated booking station
* Compatible with Livescan Management Software
Specification
Fingerprint Types |
Single-finger rolls, Two-finger flats, Four-finger slaps, Both thumbs |
|---|---|
Resolution |
1000 ppi or 500 ppi (software selectable) |
Capture Area |
3.2" x 3.0" (81 mm x 76 mm) |
Image Quality Standards |
FBI Standard CJIS-RS-0010, Appendix F IAFIS Image Quality Specifications for Scanners |
Operating Temperature |
50°F to 95°F (10°C to 35°C) |
Humidity Range |
10-80% non-condensing |
Dimensions |
11.8" x 10.0" x 5.5" (299 mm x 255 mm x 141 mm) |
Weight |
15.2 lbs (6.9 kg) |
Interface |
IEEE 1394 (Firewire) OHCI interface between scanner |
Operating Systems |
Windows Vista; Windows XP SP2 |
Certificate |
FBI, CE, FCC, UL |
