Overview

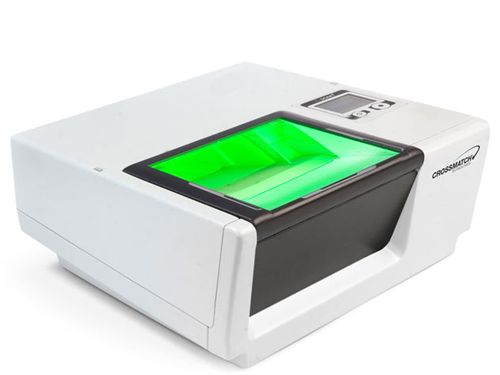

L SCAN 500P is the first FBI-certified, single platen device for capturing fingerprints and palm print images. Ideal for criminal identification and forensic analysis, the biometric identity management solution meets growing market demand for a compact, lightweight, flat, single-platen scanner.





Advantages

* First FBI-certified single platen design

* Rapid high-quality data capture

* Scans upper, lower and writers' palm images, slaps and rolls

* High resolution (500 ppi)

* 500P in use around the world

Features And Benefits

* FBI Appendix F-certified single, rolled and ten-print image capture

* Patented Auto Capture™ technology to obtain forensic-quality palm images

ca in less than one second

* Easy operation with smart buttons and intuitive icons requiring little training to master

* MTBF of 45,000 for five years of continuous use

* Optional L SCAN Cabinet available to create an integrated booking station

* Compatible with Livescan Management Software

Specification

Fingerprint Types
Single-finger rolls, Two-finger flats, Four-finger slaps, Both thumbs
Resolution
500 ppi
Capture Area
Palm print image dimensions: 2496 x 2560 pixels maximum (126 x 130 mm maximum)
Rolled and flats image dimensions: 800 x 750 pixels max. for rolled fingers; 1600 x 1500 pixels max. for slaps
Image Quality Standards
FBI IAFIS Appendix F with and without silicone membrane
Operating Temperature
35°F to 105°F (2°C to 40°C)
Humidity Range
10-90% non-condensing
Dimensions
12.0" x 12.1" x 5.2" (306 mm x 308 mm x 133 mm)
Weight
14.9 lbs. (6.8 kg)
Interface
IEEE 1394 (FireWire) interface cable
Operating Systems
Microsoft Windows 7, Vista, XP SP2 (32 bit systems)
Certificate
UL, IEC, DIN, EN, FCC, RoHS
Palm Types
Upper, lower and writers' palm scans
